For a typical domestic 100mm drain in the UK, relining costs vary per linear metre depending on pipe condition, access, and whether you need a short patch or a full structural reline. A realistic total for a standard residential job falls within a wide range once preparation is factored in. Before any contractor can give you a firm number, you need a CCTV drain survey — without one, any quote is a guess.
**What you're typically looking at: **
- Patch lining (single defect, short section): costs vary for the lining element alone
- Full CIPP reline (domestic 100mm run): liner cost varies per metre before prep costs
- CCTV survey: usually charged separately as a call-out or inspection fee, though many contractors credit it against the job if you proceed
- Preparation work (jetting, root cutting): often quoted separately and can add significantly to the total
Pro Tip: Book a CCTV survey before you accept any relining quote. Professionals regularly revise estimates once the camera reveals the true extent of root ingress or displaced joints — the survey protects you from scope creep.
Table of Contents
- How much does drain relining cost? A full breakdown
- What changes the price: main variables to check on a quote
- How long does a relining job take from survey to finish?
- What actually happens during drain relining?
- When is relining appropriate, and when do you need excavation?
- How to get an accurate quote for drain relining
- Budgetrodz: local drain relining in Cheshire
- Worked examples: how costs add up by scenario
- Key takeaways
- The view from the drain camera
- Get a drain relining quote from Budgetrodz
- Useful sources
How much does drain relining cost? A full breakdown
The per-metre model works similarly to flooring: liner material, resin volume, and cure time all scale with length, which means short patches cost proportionally more per metre than longer runs.
| Job type | Typical range | Notes |
|---|---|---|
| CCTV inspection / call-out | costs vary; often credited if you proceed with the job | |
| Short patch (1–2 m, 100mm pipe) | costs vary due to set-up costs | |
| Full reline, 5 m run (100mm) | liner cost only; prep billed separately | |
| Full reline, standard domestic run (100mm) | includes liner; jetting/root cutting extra | |
| 150mm pipe (per metre) | wider bore raises material and resin cost |
These figures cover the lining element. The following are commonly quoted as separate line items:
- High-pressure jetting: required before any liner goes in; expect an additional charge if not bundled
- Root cutting: mechanical root removal adds time and cost, especially on older clay runs
- Lateral reinstatement: cutting open junctions after lining to restore branch connections
- Access creation: breaking up a driveway or patio to reach a deep or awkward section
Pro Tip: Ask specifically whether jetting and root cutting are included in the per-metre rate. The most significant unexpected cost is almost always site preparation, not the liner itself.
What changes the price: main variables to check on a quote
Two quotes for the same property can differ by hundreds of pounds. Here is why.
Pipe and access factors:
- Length and diameter: a 150mm pipe needs more resin and a wider liner than a standard 100mm domestic run
- Access difficulty: a drain running under a driveway, patio, or extension costs more to reach and reinstate
- Pipe condition: heavy root ingress, scale build-up, or deformation all extend cleaning time before the liner can go in
- Depth: deeper pipes mean more excavation if access points need creating
Scope and method factors:
- Preparation work: jetting and root cutting are often the costliest variable; always ask whether they are included
- Cure method: UV curing is faster than hot-water or steam cure and may carry a premium, but it cuts downtime
- Liner type: different resin systems vary in strength and longevity; a manufacturer-backed liner typically costs more upfront
- Reinstatement: if the job disturbs a driveway or patio, surface reinstatement is a separate cost that can rival the lining itself
How long does a relining job take from survey to finish?
Most domestic relines, once access and cleaning are done, complete within a single day. The sequence is predictable:
- CCTV survey (1–2 hours): camera inspection to map defects, measure the run, and confirm suitability
- Jetting and preparation (1–3 hours): high-pressure cleaning, root cutting if needed, mechanical re-opening of any deformed sections
- Liner insertion (30–90 minutes): the resin-impregnated liner is pulled or inverted into position
- Curing (1–4 hours): UV curing is the fastest; hot-water and steam cure take longer but suit different liner types
- Post-cure CCTV inspection (30–60 minutes): confirms the liner has set correctly and junctions are clear
Where jobs run into a second day, the cause is almost always extensive root removal, a lateral reinstatement that needs careful cutting, or poor access requiring some excavation. Overnight cure is occasionally required for certain resin systems in cold weather.
What actually happens during drain relining?
Relining uses a cured-in-place pipe (CIPP) process: a flexible liner saturated in resin is inserted into the damaged pipe, inflated against the pipe wall, and then cured hard to form a new structural pipe within the old one. No digging required in most cases.
The key distinction between patch and full reline:
- A patch liner targets a single defect — a cracked joint, a short root intrusion — and is the right call when the rest of the run is sound
- A full CIPP reline is structural and covers the entire run; it suits pipes with multiple defects, widespread joint displacement, or general deterioration
Curing methods compared:
- UV curing: fastest (often under an hour), strong cure, suits longer runs; requires specialist UV rig
- Hot-water cure: reliable, widely available, slightly slower than UV
- Steam cure: used for certain resin types; less common in domestic work
Pro Tip: Ask your contractor which cure method they use and why. UV-cured liners tend to offer a more consistent cure on longer runs, but hot-water cure is perfectly adequate for most domestic jobs.
When is relining appropriate, and when do you need excavation?
| Condition | Relining suitable? | Notes |
|---|---|---|
| Cracked or leaking joints | Yes | Classic patch or full reline candidate |
| Root ingress (pipe still open) | Yes | Roots removed first, then liner installed |
| Displaced joints (pipe still has bore) | Yes | Full reline restores structural integrity |
| Partial collapse (some bore remains) | Sometimes | Depends on degree; CCTV assessment needed |
| Full collapse (bore gone) | No | Excavation and replacement required |
| Severe deformation (pipe crushed flat) | No | No bore to insert a liner into |
| Failed gradient (pipe bellied) | No | Relining cannot correct falls; replacement needed |
The most common homeowner expectation gap is assuming "no-dig" is always possible. Relining cannot restore a section where the pipe has fully collapsed and the bore no longer exists. A CCTV survey is the only way to know which category your drain falls into before committing to either approach.
Red flags that suggest replacement over relining:
- Camera footage shows a completely flat or crushed pipe
- Significant gradient loss (the pipe is bellied or sagging)
- Multiple sections of full collapse across the run
How to get an accurate quote for drain relining
Start with a CCTV drain survey — it is the only basis for a reliable scope. Trade guidance consistently recommends getting 2–3 itemised quotes and checking that each covers the same scope.
What a proper quote should include:
- Reference to the CCTV report findings (defect type, measured length, pipe diameter)
- Clear distinction between patch lining and full reline scope
- Itemised pricing: call-out fee, per-metre liner rate, jetting, root cutting, lateral reinstatement
- Cure method specified and warranty or guarantee terms
- Estimated timescales from start to post-cure inspection
Red flags to walk away from:
- A fixed price offered without any CCTV inspection
- Vague scope ("we'll sort it") with no written breakdown
- Pressure to pay a large deposit before the survey is complete
- No mention of what happens if the CCTV reveals additional defects mid-job
Pro Tip: When comparing quotes, check whether jetting is included or extra. A quote that looks £200 cheaper may simply have moved the jetting cost off the page.
Budgetrodz: local drain relining in Cheshire
Budgetrodz covers Ellesmere Port, Wirral, Chester, and the surrounding Cheshire area, with a typical response time of 90 minutes for emergency callouts. They offer the full sequence a relining job requires: CCTV drain surveys, high-pressure jetting, drain relining, and root cutting, all with transparent, itemised pricing and no hidden call-out fees.
What Budgetrodz offers:
- CCTV drain surveys with a written report — the essential first step before any relining quote
- High-pressure jetting and root cutting as part of preparation
- Drain relining for residential and commercial properties
- 24/7 emergency response, typically within 90 minutes
- A 5.0 Google rating from over 50 reviews
Budgetrodz's drainage services page lists the full range, including survey and relining options, so you can confirm scope and pricing before committing.
Worked examples: how costs add up by scenario
These scenarios use the UK per-metre benchmarks above. Actual costs depend on local labour rates, access conditions, and CCTV findings.
| Scenario | Assumptions | Estimated cost |
|---|---|---|
| Short patch, 2 m, 100mm pipe, easy access | Jetting included, no reinstatement | £140–£240 for the patch liner plus £100–£300 for jetting/prep, for a typical total of £240–£540 |
| Full reline, 7 m, 100mm pipe, standard access | Jetting + liner, no driveway reinstatement | £560–£1,050 for the liner plus £100–£300 for jetting/prep, for a typical total of £660–£1,350 |
| Full reline, 10 m, 100mm pipe, under driveway | Jetting, liner, driveway reinstatement | £800–£1,500 for the liner plus £100–£300 for jetting/prep and £300–£800 or more for driveway reinstatement, for a typical total of £1,200–£2,600 |
How the numbers build:
- CCTV survey: establishes measured length and defect type — without this, the scenario is guesswork
- Jetting and prep: add £100–£300 depending on root load and pipe condition
- Liner (per metre): multiply the measured run by the applicable per-metre rate
- Reinstatement: driveway or patio work is priced separately and can add £300–£800 or more
Note that international price guides show considerably higher per-metre rates for Australia and the US. UK domestic benchmarks sit lower, so avoid using overseas figures to judge a local quote.
Key takeaways
UK drain relining costs vary per metre for domestic 100mm pipes, with realistic residential totals falling within a range once preparation is included — and a CCTV survey is the non-negotiable first step before any quote can be trusted.
| Point | Details |
|---|---|

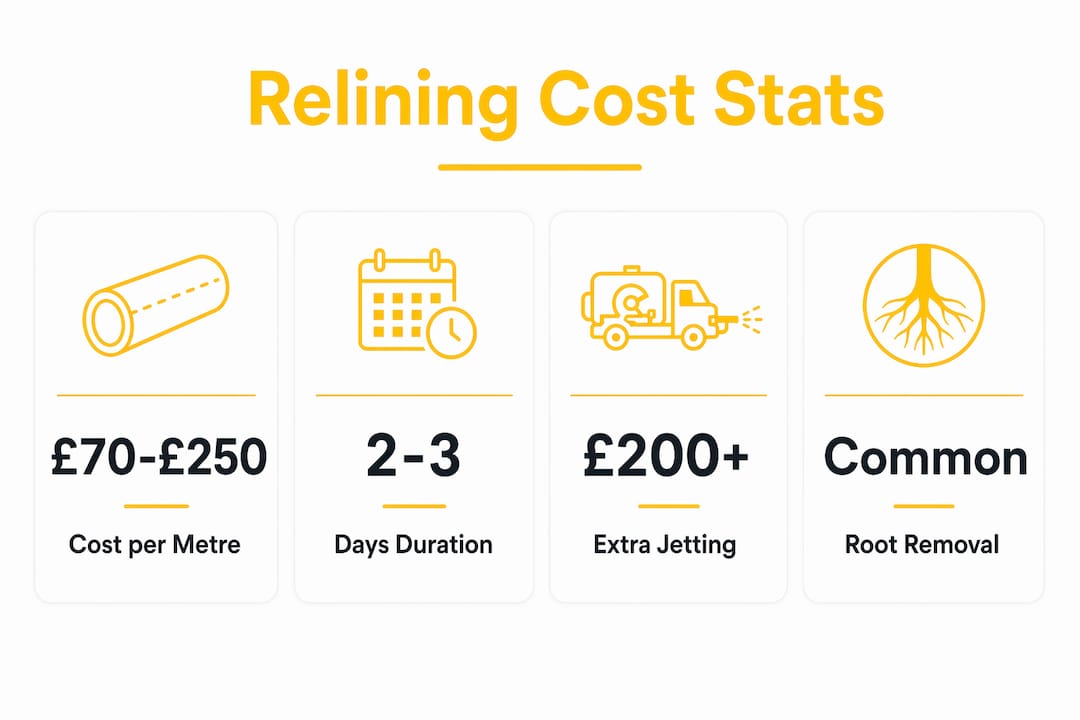

| Per-metre benchmarks | Domestic 100mm relining typically costs £70–£250 per metre. Patch jobs sit at the lower end, around £70–£120 for a single defect or short section; full structural relines often fall between roughly £80 and £150 per metre. Preparation and jetting may add separate charges, so ensure your quote itemises these costs. |
| Preparation is the wildcard | Jetting and root cutting are often quoted separately and can add £100–£300 or more to the total. |
| CCTV survey first | No reliable quote exists without a camera inspection to confirm defect type and measured length. |
| Get 2–3 itemised quotes | Check that each quote covers the same scope: jetting, liner, lateral reinstatement, and warranty. |
| Budgetrodz for Cheshire | Budgetrodz offers CCTV surveys, jetting, and relining across Ellesmere Port, Wirral, and Chester with fixed pricing. |
The view from the drain camera
The most common jobs Budgetrodz engineers encounter are root ingress into older clay pipes and displaced joints on runs that have shifted over decades. Both are textbook relining candidates — provided the bore is still open. The distinction between a short patch and a full structural reline matters more than most homeowners realise. A patch on a single cracked joint costs a fraction of a full reline, but fitting a patch on a run with five displaced joints is false economy: within a year, the next joint fails and you are back to square one.
The mistake that costs homeowners the most is accepting a "no-dig guaranteed" promise without first seeing CCTV footage. Any contractor willing to quote a fixed price without a camera inspection is either guessing or hoping the pipe is simpler than it looks. The second most expensive mistake is failing to ask whether lateral reinstatement is included. On a run with branch connections, cutting those junctions back open after lining is skilled work — and it is routinely left off a headline quote.
Get a drain relining quote from Budgetrodz
If you are dealing with a slow drain, recurring blockage, or a CCTV report showing cracks or root ingress in Cheshire, Budgetrodz is the local provider to call first. Fixed pricing, no hidden fees, and a 90-minute emergency response mean you get a clear answer fast — not a vague estimate that doubles once the job starts.
Budgetrodz covers Ellesmere Port, Wirral, Chester, and the wider Cheshire area. Their CCTV survey service gives you the written report and measured scope you need to compare quotes properly. For urgent drainage problems, their 24/7 emergency service is available around the clock. Contact Budgetrodz to book a survey or arrange an emergency visit — and get a quote that is actually based on what your drain looks like.
This article provides general cost guidance for informational purposes. Confirm current pricing and suitability with a qualified drainage contractor for your specific property.
